真空用ロータリアダプタ (WOODFAST M320用)

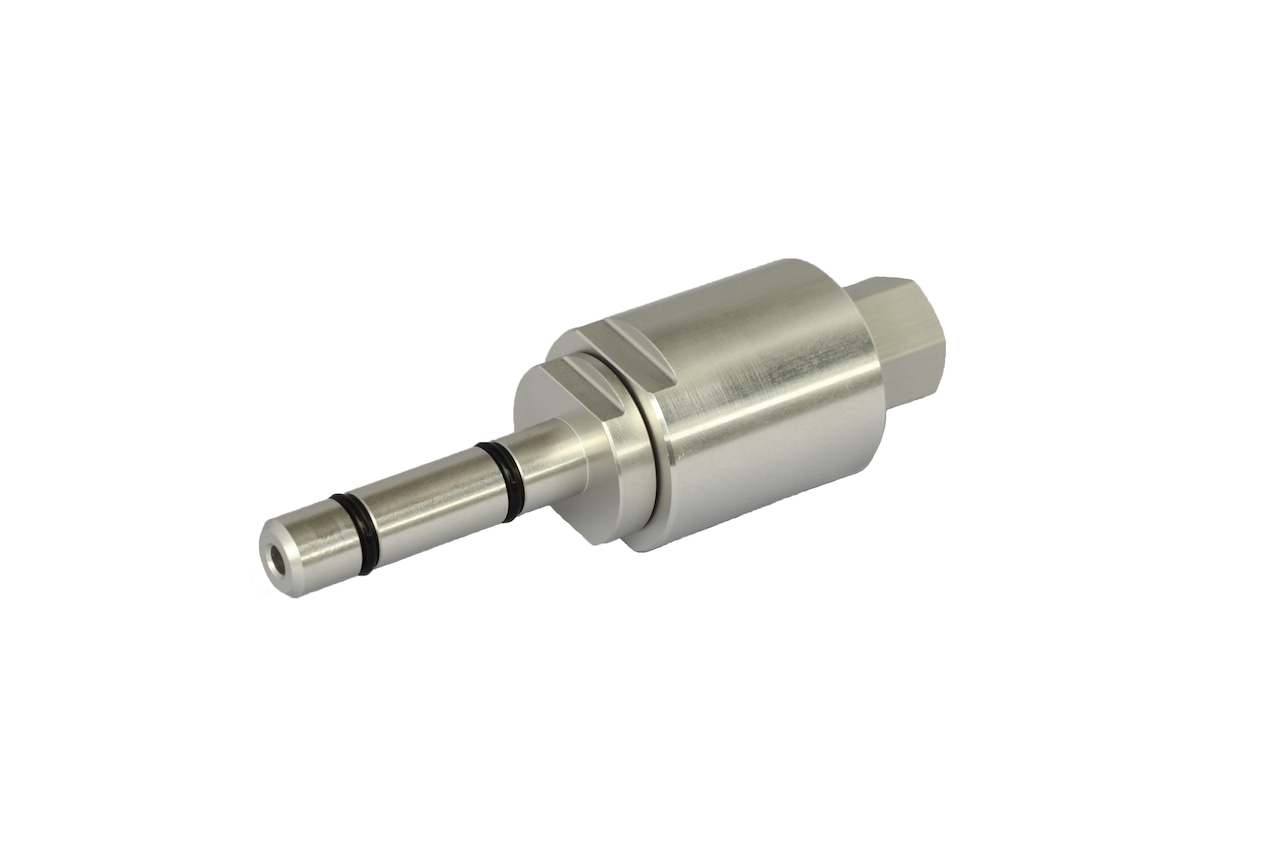

作品に傷をつけずに固定が出来る、非常に便利な真空チャッキングを実現させるためのロータリーアダプタです。

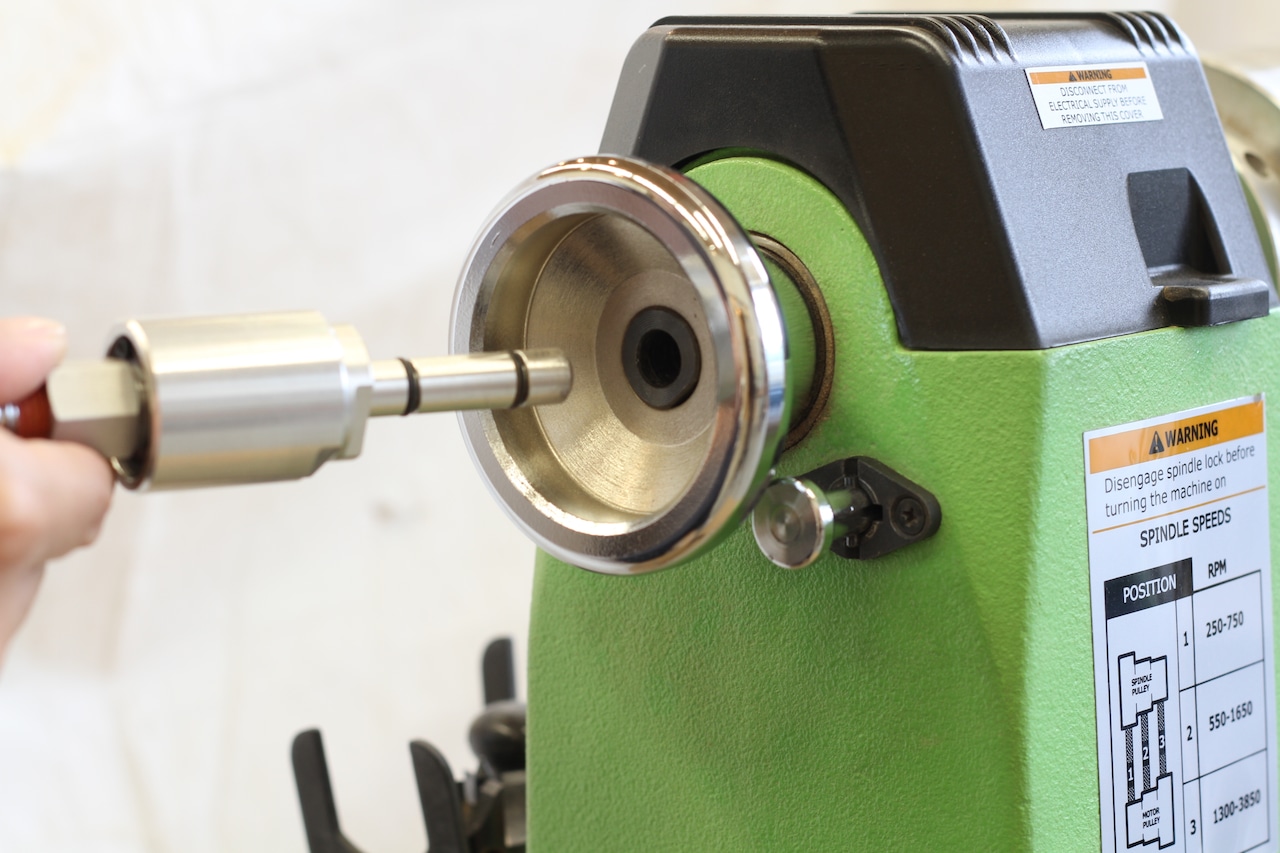

主軸の貫通穴に直接取付けできる構造になっており、工具レスで旋盤とのクイック着脱を実現しました。

真空チャッキングシステムの詳細な使い方などはこちらの記事をご参考ください↓
https://nwsofficialblog.com/2019/08/16/vacuum-chucking/

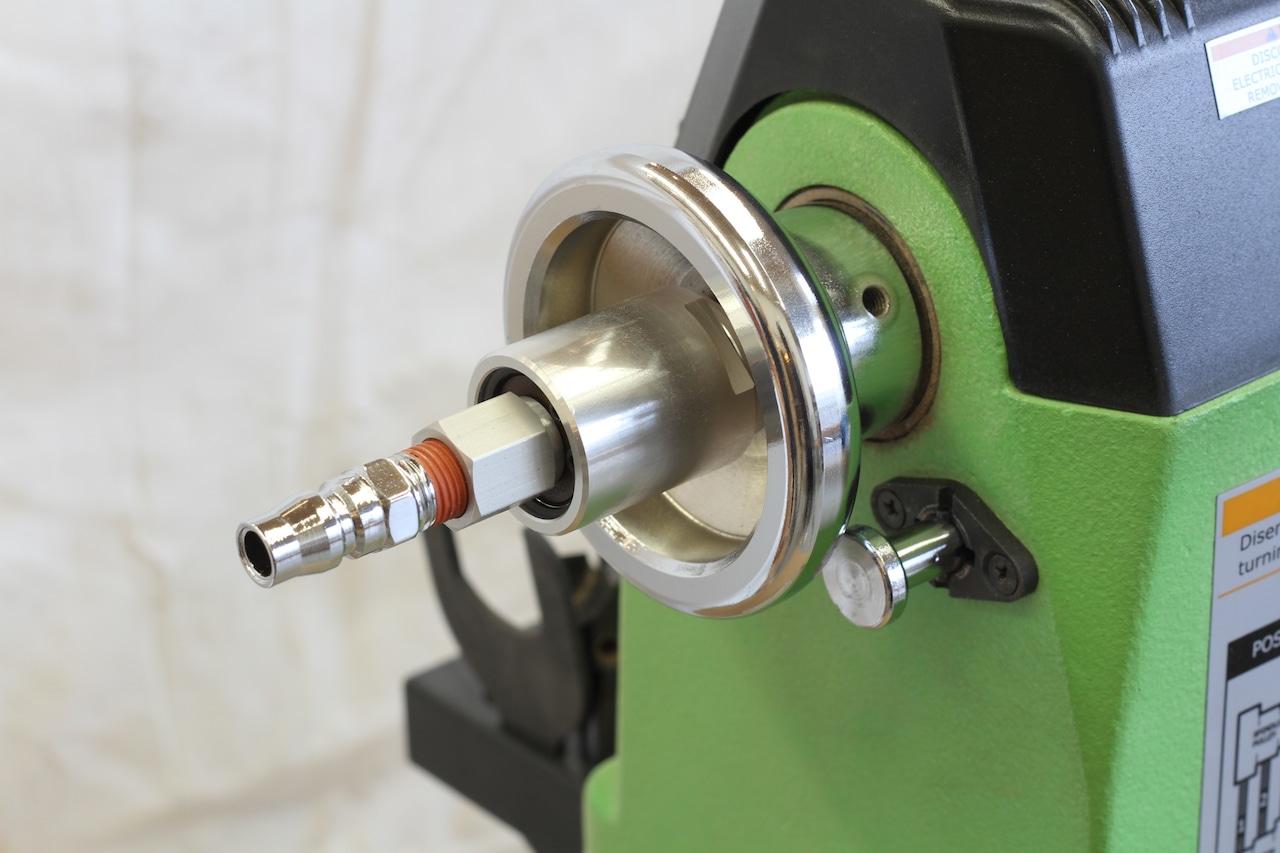

ホース取付側は空圧機器の接続規格として広く普及している「PT1/4のテーパーネジ」となっており各種接続継手パーツが取付け可能。
(継手パーツは付属しませんので、ソケットやニップル、チューブフィッテイングなどご自身の使用環境に合わせてご用意ください)

また主軸への挿入部はネジ式で交換が可能。
挿入部を付け替えるだけでサイズの違う旋盤同士で付替えもできます


別売りの接続キットを使用すればホースをつなぐだけですぐに真空チャッキングシステムが完成します。
http://woodturning.thebase.in/items/12163960


※こちらの商品は木工旋盤 WOODFAST M320に対応しておりますが、旋盤本体の製造ロットによって取り付け部のサイズが変更になっている場合がございます。
ご購入の前にご自身でサイズを測定いただくか、お問い合わせください。

真空チャッキングシステムの接続方法はこちら↓
https://docs.wixstatic.com/ugd/4feaf2_6bd8434e660040a2b18777bc12f1ff21.pdf


☆発送方法
 レターパックは追跡可能、手渡し、日時指定が出来ません。
 ご了承ください。
 佐川急便は追跡可能・手渡し配送となります。
